915nm 3W IR MM Fiber Coupled Laser System
Usually we often see visible lasers, but few people will test infrared invisible lasers. Today we tested a 915nm infrared laser and its output power of 3000mW. Then when it is coupled through the fiber, what is the output power of the fiber end? Let’s check it now.
The optical fiber can be customized. 100μm~1000μm fiber is optional, the coupling efficiency of different fibers will be somewhat different. The larger the core diameter, the higher the coupling efficiency, usually the coupling efficiency is 80%~90 percent. In addition, the fiber length and interface also can be customzied. Here is 1000μm, SMA interface fiber.
The output power of the laser is adjustable from 0 to 3000mW, which can be adjusted by the knob. It supports 3 working modes, CW/TTL/Analog, switch the working mode on the back of the laser power supply. In TTL/Analog modulation mode, an external modulation signal needs to be connected.
The 915nm laser is an infrared laser, invisible light, we use an infrared sensitive film to observe. Faint light spots can also be photographed with a camera.
772nm Fiber Laser CW Working Mode Operation Video
What we are going to demonstrate in today’s video is a 772nm 1W fiber coupled laser. The output power of the laser is adjustable from 0 to 1000mW, which can be adjusted by the knob. It supports 3 working modes, CW/TTL/Analog, switch the working mode on the back of the laser power supply. In TTL/Analog modulation mode, an external modulation signal needs to be connected.
The optical fiber is pluggable and customizable. The fiber core diameter,fiber length and interface can be customized according to customer needs. 100μm to 1000μm fiber is optional, the coupling efficiency of different fibers will be somewhat different. The larger the core diameter, the higher the coupling efficiency, usually the coupling efficiency is 80%~90%.

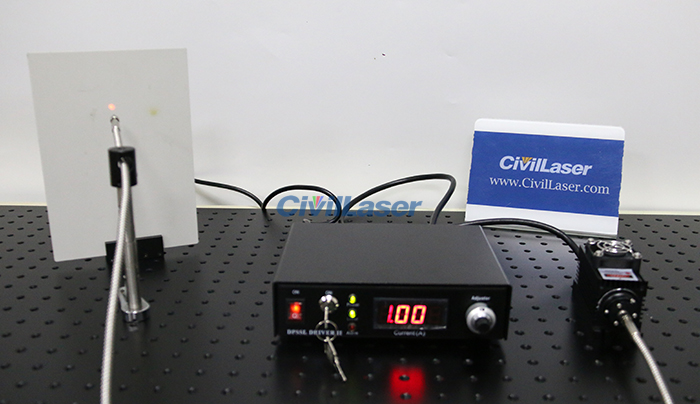

The 772nm laser is a near-infrared laser, and the light spot is dim.
660nm Red Semiconductor Laser Coupled Fiber Optic
What I’m going to talk about today is 660nm 1800mW fiber laser system. It supports 3 working modes, CW/TTL/Analog. In TTL/Analog modulation mode, an external modulation signal needs to be connected. In addition, the Lock crystal head cannot be pulled out. External signal Mod Input, no need to connect in CW working mode.
The optic fiber can be customized. Here is 1000μm SMA905 interface fiber. 100μm to 1000μm fiber is optional, the coupling efficiency of different fibers will be somewhat different. The larger the core diameter, the higher the coupling efficiency, usually the coupling efficiency is 80~90%.
To adjust the output power by adjusting the working current:
Turn the ‘Adjustor’ knob clockwise, when the current exceeds the minimum working current, the Laser indicator light turns green, and there is laser output at this time. When the ‘Adjustor’ is rotated clockwise to the end, it is the max working current and the max output power of the laser. In addition, the red STOP button is used for emergency stop, and it is not used under normal circumstances.
