August 2, 2022 Civil Laser, DPSS Laser

543nm Green Solid State Laser with SMA905 Optical Fiber

This is a 543nm solid state laser system. The output power is 100mW, it can be adjusted by the rotary button on the power supply. The red button is the power switch. The key is a laser switch. The middle LCD shows the current working current. The rotary button on the right is to adjust the current size.

There are 3 working modes for the laser to choose from. Select the working mode CW/TTL/Analog by the sliding button on the back of the power supply.

This laser coupled a 1000μm, 3 meters in length, SMA905 interface fiber, and its can be customized.

The effect of laser output from the fiber port.

February 20, 2017 All Posts, DPSS Laser

3IN1 DPSS Laser modulation CW/TTL/Analogue CivilLaser

3IN1 DPSS Laser modulation CW/TTL/Analogue

This video is from a 300mw Green DPSS Laser, the max out power is 300mw, and You can adjust the output power by adjusting the current.

it includes a Lab adjustable power supply. this kind of power supply support TTL and analogue signal input.

March 19, 2015 All Posts, Civil Laser, DPSS Laser

CivilLaser DPSS Lasers 405nm 457nm 473nm 515nm 520nm 532nm 561nm 589nm 607nm 637nm 671nm

405nm 100mW Laser

450nm 100mW Laser

457nm 500mW Laser

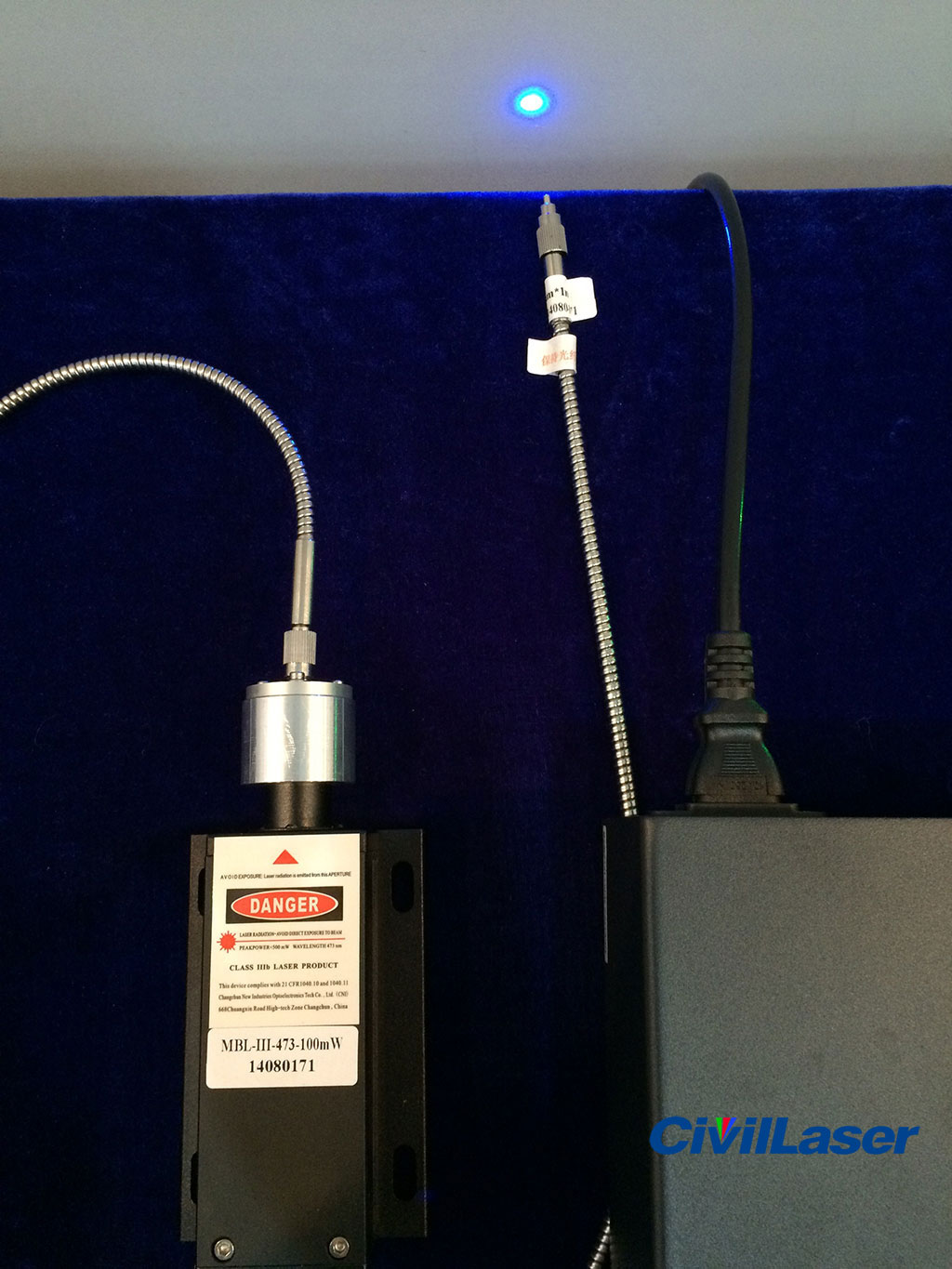

473nm 100mW Laser

473nm 200mW Laser

515nm 20mW Laser

520nm 50mW Laser

520nm 1000mW Laser

532nm 10W Laser

532nm 1000mW Laser

561nm 100mW Laser

589nm 1000mW Laser

589nm 100mW Laser

589nm 1000mW Laser

607nm 100mW Laser

637nm 200mW Laser

637nm 1500mW Laser

671nm 200mW Laser
